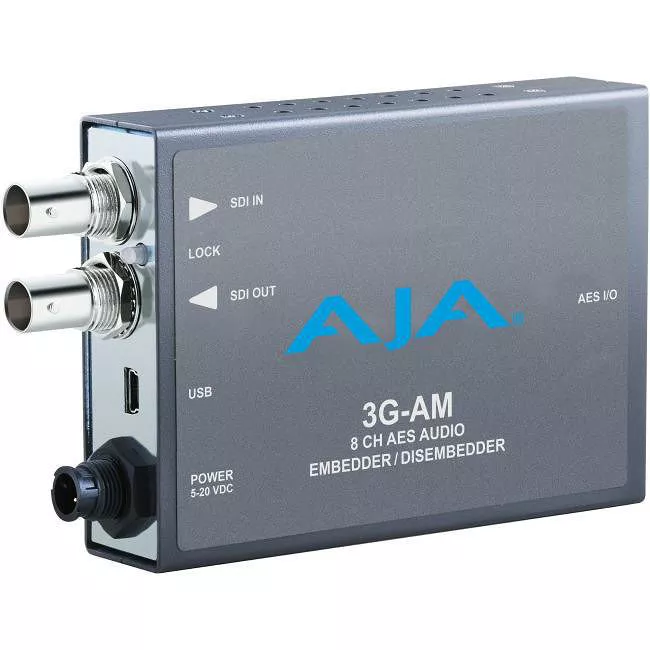

AJA-3G-AM-XLR-00
MPN: 3G-AM-XLR

AJA 3G-AM-XLR 3G-SDI 8-Ch AES Embedder/Disembedder-bal. XLR-USB Mini-Conf.


Highlights
The 3G-AM is an 8-Channel AES audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable.

AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The 3G-AM automatically detects and configures to the input video standard.

Features

  • 3G-SDI Embedder/Disembedder
  • 8-Channel AES I/O
  • Supplied breakout cables for balanced AES - XLR connectors
  • USB connectivity via AJA MiniConfig software
  • Dipswitch configuration
  • 5-20VDC Power

Choice of Supplied Breakout Cable

Order 3GAM with either a XLR or BNC breakout cable.

Specify 3G-AM-XLR for XLR connectivity or 3G-AM-BNC if you prefer BNC connectors for AES audio needs.

USB and Mini-Config Support

AJA's free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.
