Highlights:
  • Product Type: Signal Generator
  • Form Factor: External
  • Condition: New
  • Category: Video Cards and Devices
Contact sales for pricing

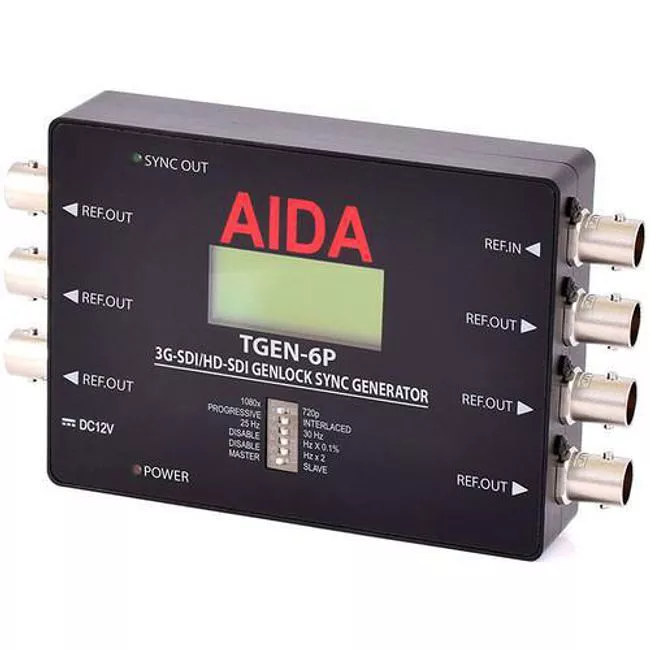

Professional 3G-SDI Genlock Generator

The TGEN-6P generates 3G-SDI and HD-SDI Genlock Sync reference, while giving you the ability to sync all your video sources into one master sync signal. It supports 15 different formats ranging from 720p 25Hz up to 1080p 59.94/60Hz and can be operated in Slave mode, distributing external reference sync signals. TGEN-6P has a built-in LCD screen and dipswitches for convenient setting and status checking. Its compact and solid design helps users create and maintain a more streamlined workflow.

MAIN FEATURES

Multi format HD Tri Level Sync up to 1080p60.
Both V Sync and H Sync generation for more accurate timing.
Up to 6 synchronized reference output per device.
Slave mode for cascading.
Built in LCD screen.
Built in setting dipswitches.
Versatile, compact, and rugged design.

General Information
Manufacturer
AIDA Imaging
Manufacturer Part Number
TGEN-6P
Manufacturer Website Address
http://www.aidaimaging.com
Brand Name
AIDA
Product Name
GENLOCK Reference SYNC Generator
Product Type
Signal Generator
Technical Information
Functions
Signal Generation
Frame Lock/Genlock
Yes
Interfaces/Ports
SDI
Yes
Number of SDI Inputs
1
Number of SDI Outputs
6
Physical Characteristics
Form Factor
External
Height
1.1"
Width
5.1"
Depth
3.4"
Weight (Approximate)
9.81 oz
Miscellaneous
Package Contents
  • GENLOCK Reference SYNC Generator
  • DC12v Power Supply
Warranty
Limited Warranty
2 Year
