ADI-GCON-SDI-00
MPN: GCON-SDI

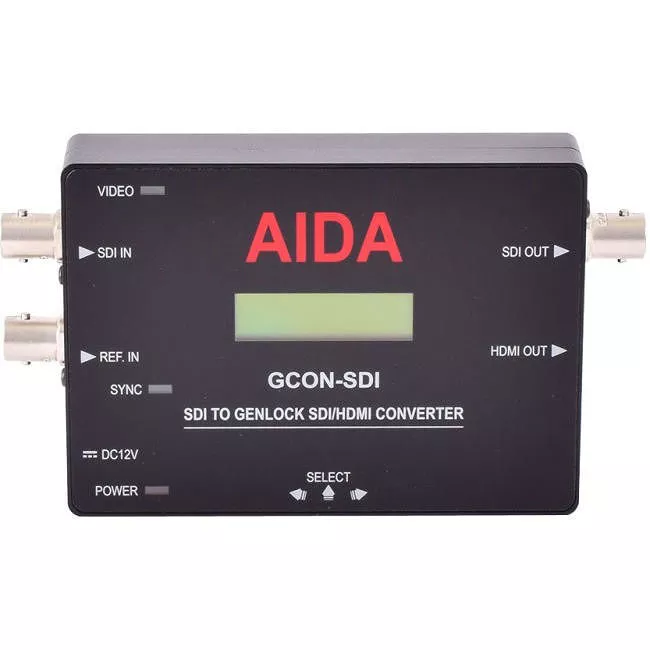

AIDA GCON-SDI SDI to Genlock SDI/HDMI Converter


Highlights

THE PERFECT CAMERA SIDEKICK - Professional SDI Genlock Converter

GCON-SDI converts SDI/3G-SDI sources to Genlock SDI/3G-SDI and HDMI with zero latency, keeping the integrity of the original source feed intact. GCON-SDI supports 1080p resolutions up to 60 fps. The Tri-Level Sync Genlock featured in the GCON-SDI syncs with other system components for seamless vertical interval switching between sources. GCON-SDI supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. Its rugged and portable design makes GCON-SDI a perfect camera sidekick to where it's needed most.

MAIN FEATURES
3G-SDI up to 1080p60 full HD Resolution Input.
Simultaneous HDMI and SDI Loop Output.
Highly compatible with Tri Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz.
SMPTE 352M Ancillary Data supported.
Embedded audio pass through via SDI & HDMI.
Adjustable V-sync & H-sync phases.
Divisional picture comparison.
Built in Pattern Generator.
Built in LCD menu screen.
Built in menu control button.
Versatile, compact, and rugged design.
