YUA-SC550N4 M2 SDI-00
MPN: SC550N4 M2 SDI

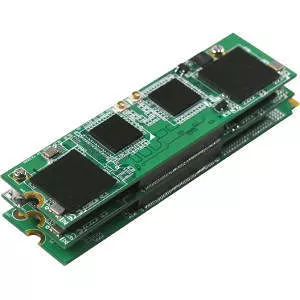

YUAN SC550N4 M2 SDI 4 Channel SDI 1080P60 M.2 Capture Card

Highlights
General Information
Manufacturer
YUAN High-Tech Development Co., Ltd.
Manufacturer Part Number
SC550N4 M2 SDI
Manufacturer Website Address
http://www.yuan.com.tw
Brand Name
YUAN
Product Model
SC550N4 M2 SDI
Product Name
SC550N4 M2 SDI Video Capturing Device
Product Type
Video Capturing Device
Technical Information
Functions
  • Video Capturing
  • Audio Embedding
    • Maximum Resolution
    1920 x 1080
    Video Formats
    H.264
    Platform Supported
  • Linux
  • PC
    • Interfaces/Ports
    Host Interface
    PCI Express x4
    SDI
    Yes
    Number of SDI Inputs
    4
    Physical Characteristics
    Form Factor
    M.2 2280
    Width
    3.1"
    Depth
    0.9"
    Miscellaneous
    Country of Origin
    Taiwan
    Environmentally Friendly
    Yes
    Environmental Compliance
    Waste Electrical and Electronic Equipment Directive (WEEE)
