Integrate mixed cabling environments using either switched or shared Ethernet. This full-featured media converter makes the migration from copper to fiber easier than ever before.
About
Integrate mixed cabling environments using either switched or shared Ethernet. This full-featured media converter makes the migration from copper to fiber easier than ever before.
Specifications
General Information
Manufacturer
Transition Networks, Inc
Manufacturer Part Number
E-TBT-FRL-05
Manufacturer Website Address
http://www.transition.com
Brand Name
Transition Networks
Product Model
E-TBT-FRL-05
Product Name

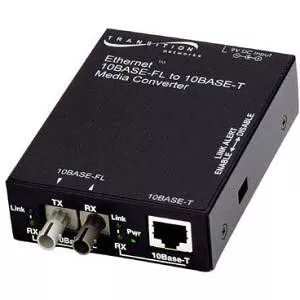

10BASE-T to 10BASE-FL Media Converter
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
2
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Number of ST Ports
1
ST Port Type
Duplex
Media & Performance
Media Type Supported
Fiber Mode Supported
Multi-mode
Maximum Distance Supported
1.24 Mile
Network & Communication
Ethernet Technology
Ethernet
Network Technology
Power Description
Input Voltage
9 V DC
Physical Characteristics
Width
1"
Weight (Approximate)
2 lb
Miscellaneous
Additional Information
LANart Inside:
- Select Transition Networks' product now use LANart's state-of-the-art ASIC technology. These chips go beyond the functions provided by off-the-shelf-silicon used by our competitors, to incorporate enhancements specific to media conversion technology such as link fault propagation and indicators for power, data and link status. AutoCross Technology:
- AutoCross technology eliminates an entire category of network troubleshooting by automatically matching crossed and uncrossed cables to the appropriate connection. The twisted pair port is instantaneously configured to the correct MDI or MDI-X configuration. LinkAlert:
- Because most Ethernet technologies are unable to recognize downlink faults, a failed link may appear normal to network management, requiring unnecessary time devoted to troubleshooting. LinkAlert monitors all physical uplink and downlink failures and enables all faults to be detected by network management. Switches:
- S1: Enables/disables LinkAlert Fiber Optic Connector:
- Min TX PWR: -16.0 dBm
- Max TX PWR: -10.0 dBm
- RX Sensitivity: -32.5 dBm
- Max In PWR: -8.0 dBm
- Link Budget: 16.5 dB
Certifications & Standards
- IEEE 802.3® 10BASE-T; 10BASE-FL
- UL Listed
- C-UL Listed (Canada)
- CISPR/EN55022 Class A
- FCC Class A
- CE Mark
Warranty
Limited Warranty
Lifetime
Additional Warranty Information
Effective for Products Shipped May 1, 1999 and After. Every Transition Networks' labeled product purchased after May 1, 1999 will be free from defects in material and workmanship for its lifetime. This warranty covers the original user only and is not transferable. This warranty does not cover damage from accident, acts of God, neglect, contamination, misuse or abnormal conditions of operation or handling, including over-voltage failures caused by use outside of the product's specified rating, or normal wear and tear of mechanical components. If the user is unsure about the proper means of installing or using the equipment, contact Transition Networks' free technical support services.
