TYN-S8228GM3NR-00
MPN: S8228GM3NR

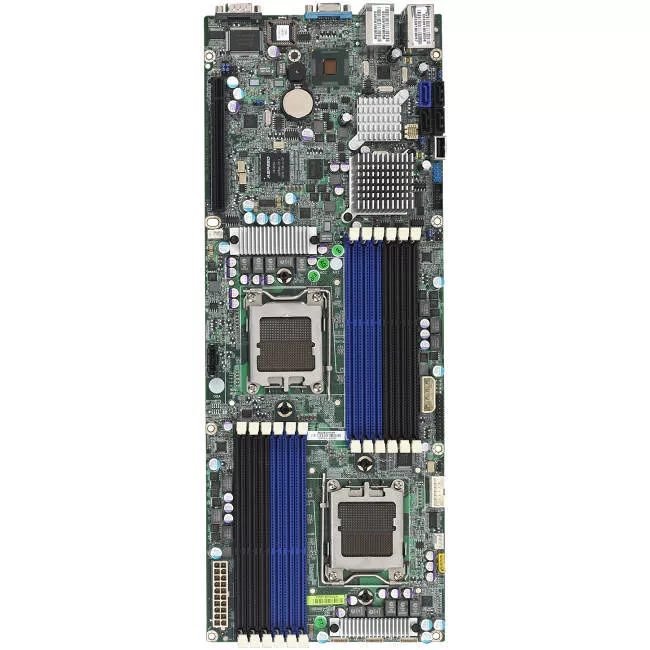

TYAN S8228GM3NR Server Motherboard - AMD Chipset - Socket C32 LGA-1207

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8228GM3NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S8228
Product Name
S8228 Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
SR5650
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket C32 LGA-1207
Processor Supported
  • Opteron Quad-Core
  • Opteron Hexa-Core
    • Memory
    Number of Memory Slots
    12
    Maximum Memory Supported
    96 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    1
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    3
    Number of USB 2.0 Ports
    3
    Serial Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Total Number of Onboard USB Ports
    2
    Number of Onboard USB 2.0 Ports
    2
    Onboard LEDs Header
    Yes
    Physical Characteristics
    Width
    6.3"
    Depth
    16.4"
    Miscellaneous
    Environmentally Friendly
    Yes
