Highlights:
  • Product Type: Router
  • Ethernet Technology: Fast Ethernet
  • Condition: New
  • Category: Network Hardware
Contact sales for pricing

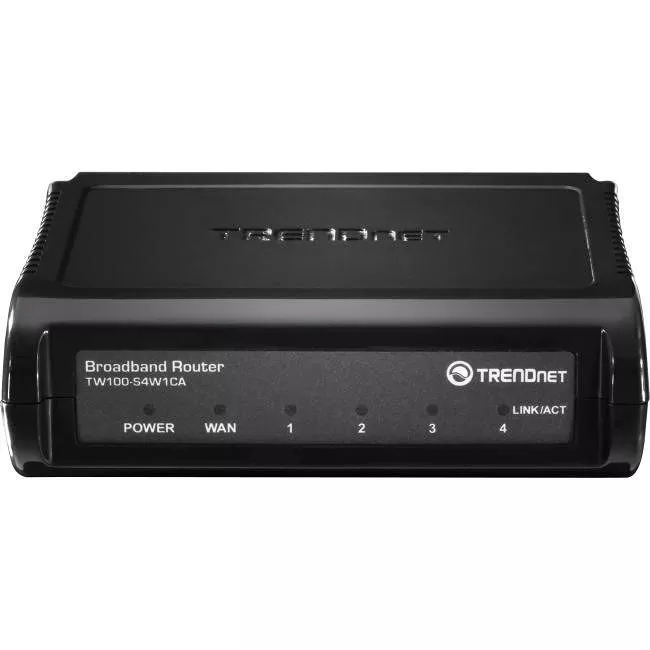

The TW100-S4W1CA 4-Port Broadband Router provides the easiest and most secure way to share your high-speed Cable/xDSL Internet connection. It has four 10/100Mbps half/full duplex switch ports that directly connect to workstations or uplink to another hub or switch. The TW100-S4W1CA also functions as a firewall for your PC, protecting your computer from hackers. It allows up to 253 users to access the Internet using a single ISP account. By sharing just one TW100-S4W1CA, one IP address, and one Cable/xDSL modem, dozens of network users can surf the Internet simultaneously. TRENDnet's 4-port Broadband Router is a feature-rich product that provides cost-effective functionality and an easy configuration.

General Information
Manufacturer
TRENDnet
Manufacturer Part Number
TW100-S4W1CA
Manufacturer Website Address
http://www.trendnet.com
Brand Name
TRENDnet
Product Model
TW100-S4W1CA
Product Name
TW100-S4W1CA Broadband Router
Product Type
Router
Interfaces/Ports
Total Number of Ports
5
Number of Network (RJ-45) Ports
4
Number of Broadband (RJ-45) Ports
1
Network & Communication
Network Technology
10/100Base-TX
Ethernet Technology
Fast Ethernet
VoIP Supported
No
Management & Protocols
Security Features
  • NAT
  • IP / MAC Address Filter (32 entries)
  • Domain / URL Blocking (32 entries)
  • Scheduling (6 entries)
  • Special Applications (10 entries)
  • DMZ (5 entries)
  • IPSec
  • L2TP
  • PPTP pass-through (Up to 8 VPN sessions)
  • PPPoE
Power Description
PoE (RJ-45) Port
No
Input Voltage
5 V DC
Redundant Power Supply Supported
No
Physical Characteristics
Color
Black
Form Factor
Desktop
Height
0.1"
Width
3.8"
Depth
3.1"
Weight (Approximate)
3.99 oz
Miscellaneous
Package Contents
  • TW100-S4W1CA Broadband Router
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network Cable (1.5 m / 5 ft.)
  • Power Adapter (5V DC, 1A)
Additional Information
  • Windows Setup Wizard automatically configures the Router according to your Internet connection
  • Supports 253 users to access Internet at the same time
  • DHCP server allocates up to 253 client IP addresses
  • 32 "Static DHCP" entries for your network devices
  • Up to 10,240 Internet sessions
  • Upgradeable firmware
  • Save configuration to PC file
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3u
  • CE
  • FCC
Environmentally Friendly
Yes
Environmental Certification
  • RoHS
  • WEEE
  • Country of Origin
    China
    Warranty
    Limited Warranty
    3 Year
