About

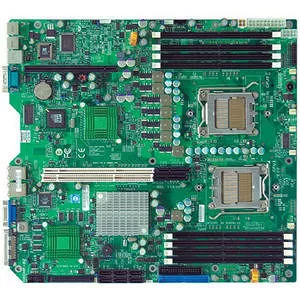

H8DMR-82 Server Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-H8DMR-82-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
H8DMR-82
Product Name
H8DMR-82 Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
MCP55 Pro
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket F LGA-1207
Processor Supported
Opteron
HyperTransport Speed (MHz)
1000
Memory
Number of Memory Slots
8
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
4
Number of PCI-X Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x8 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Number of SCSI Interfaces
1
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
13.1"
Miscellaneous
Package Contents
- 1 x H8DMR-82 Server Board
- Motherboard Manual for H8DMR-82
- 1 x ATX Floppy Cable
- 1 x ATA 100/133 IDE LP Cable
- 1 x Version 1.00 (or newer) Chipset Driver CD
- 2 x CPU Heat Sink Back Plate
Additional Information
- ROHS Compliant
- Dual Channel memory supported
Chipsets:
- nVidia MCP55 Pro
- NEC uPD720400
BIOS Features:
- 8Mb Flash EEPROM with AMI BIOS SST49LF080A BIOS Chip
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- USB Keyboard Support
Support CD Contents
- BIOS flash upgrade utility
Hardware Monitoring:
- Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT, Chipset
- CPU switching voltage regulator
- Total up to 5-fan status tachometer monitoring
- Up to five 3-pin fan headers
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans with fan-speed control
- Low noise fan speed control
- Overheat backup fan connector
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- I2C Temperature Sensing Logic
- CPU / System Overheat LED
- Suspend-State Indicator LED
- +5V Standby Alert LED
- Chassis Intrusion Header
- Chassis Intrusion Detection
- Onboard voltage monitors for two CPU cores, Hyper Transport (1.2V), memory banks (1.8V), chipset (1.5V)
- Fan status monitor with firmware/software on/off and speed control
- Watch Dog
- Environmental temperature monitoring via BIOS
- Power-up mode control for recovery from AC power loss
- System resource alert
- Auto-switching voltage regulator for the CPU core
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- Internal/external modem ring-on
Supported Operating Systems:
- MS Win 2000 Adv Server + SP4
- MS Win XP Pro + SP2
- MS Win 2003 Ent
- MS Win XP Pro x64
- MS Win 2003 Ent x64
- Fedora Core 5
- RedHat Linux EL 3.0 (Update-5)
- RedHat Linux EL 3.0 (Update-6)
- RedHat Linux EL 4.0 (Update-1)
- RedHat Linux EL 4.0 (Update-2)
- SuSE 10.0
- Fedora Core 5 x64
- RedHat Linux EL 3.0 (Update 5) x64
- RedHat Linux EL 3.0 (Update-6) x64
- RedHat Linux EL 4.0 (Update 1) x64
- RedHat Linux EL 4.0 (Update 2) x64
- SuSE 10.0 x64
