SMV-VCA-100S-00
MPN: VCA-100S

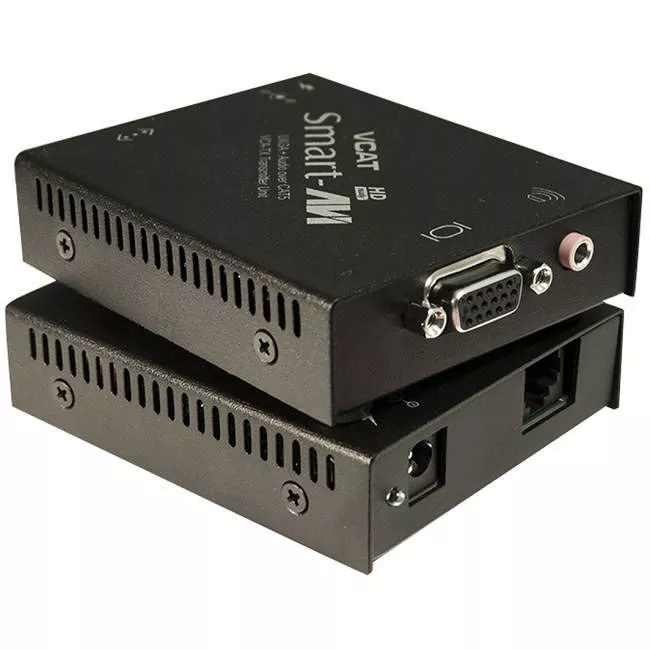

SmartAVI VCA-100S Video Console/Extender


Highlights

SmartAVI's VCA-100 uses a single CAT5 cable to extend high-resolution VGA video and stereo audio up to 1,000 feet away from signal source devices. Powerful, Cost-Effective VGA Extension Solution The VCA-100 is SmartAVI's most economical and easy-to-use VGA extension model. Offering up to 1000 feet worth of signal extension between transmitter (TX) and receiver (RX) units, VCA-100 systems ensure high quality playback via a cost-efficient CAT5 cable. VGA Extension in Any AV Environment A great fit in a vast array of environments, VCA-100 systems excel in airports, schools, retail spaces, medical facilities, and media-centric environments of all kinds. Cost-conscious users will swoon for VCA-100's economical CAT5 cabling, and AV integrators of any technical level can install VCA-100 easily, thanks to its plug-and-play design.

Features:

  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Output reaches up to 1,000 feet (300m).
  • Supports high resolution clear video up to 1920x1200.
  • HDTV compatible (720p, 1080i,1080p).
  • 300 MHz Bandwidth.
  • Sends high-resolution XVGA and Stereo Audio signals.
  • Compatible with VGA, XGA, Sun, MAC and SGI Signals.
  • Sync Format / Polarity Preservation.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in lightning, power surge and transient protection.
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact metal case enclosure.
  • Optional power supply for remote unit.
  • Remote Units come with Buffered Outputs.
