SRW-SRW-C-K100-00
MPN: SRW-C-K100

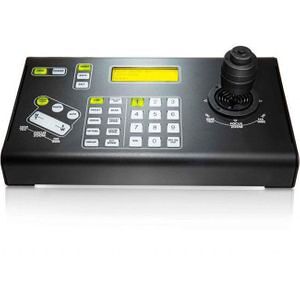

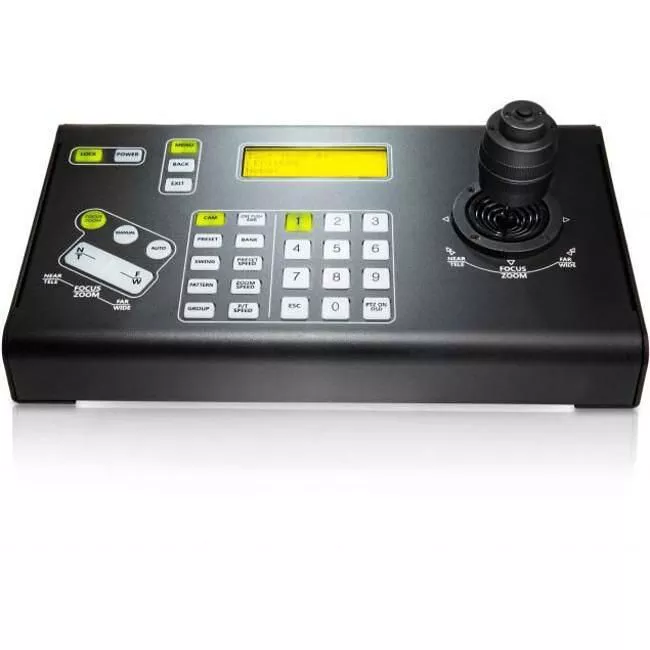

Salrayworks SRW-C-K100 PTZ Control Keyboard

Highlights

All you want to know

  • Communication : RS-422/485
  • Protocol : VISCA
  • Control signal format : 9,600bps~38,400bps

It's easy to achieve professional looking productions, with joystick adjustment of pan and tilt, plus zoom control either via joystick or a separate seesaw lever. Adjustable speed control of PTZ allows smooth, accurate camera movements.

Control up to 4 cameras

The remote controller allows control of pan, tilt, zoom and other functions of up to 14 cameras.

Swing/Pattern/Group functions up to 8 functions

A sequence of camera moves can be stored for instant recall whenever required. Available to set up to 8 of swing, 8 of pattern and 8 of group functions.

Store and recall camera presets up to 255

Up to 255 presets (camera angles and settings) can be stored recalled instantly via the numeric keypad, saving time in multiple camera set-ups.

Tally indicator

Includes Normal Tally/On-Air Tally/Contact Modes

Adjust camera paint functions

Color related settings - including black levels, white balance, detail level, auto exposure level, iris, gain and shutter speed - can be adjusted directly without needing to use the camera menus.

Rear Panel

Communication : 422/485Power plug
Power switch

Input/output connectors

Communication : RS-422/485

Protocol : VISCA

Control signal format : 9,600bps~38,400bps

Physics

  • Controller button : LED supported for each button
  • Joystick : Pan/Tilt/Zoom(24/23/16 steps)
  • Input voltage : DC12V ± 10%
  • current consumption : 1A max.
  • LCD display : Graphic display of 20*4 lines.
  • Operating temperature : 0 ºC~ 40 ºC
  • Dimension (W x H x D) : 284 x 163 x 125 mm
  • Mass : Approximately 1 kg
  • Dial knob
