MPN: OMX-12GSDI-1X6
Ocean Matrix OMX-12GSDI-1X6 12G-SDI Reclocking 1x6 Distribution Amplifier
Highlights
About
Specifications

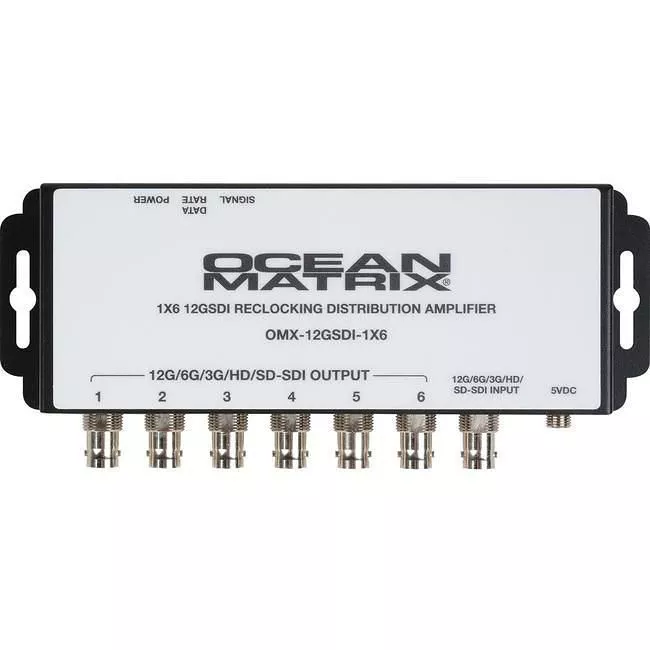

Ocean Matrix 12GSDI-1X6 12G-SDI Reclocking 1x6 Distribution Amplifier
The Ocean Matrix OMX-12GSDI-1X6 is a low cost, stand-alone 1x6 reclocking distribution amplifier for signals up to 12G-SDI UHD. Input any signal, whether it's SDI, 3G-SDI or even 12G-SDI, and feed six pristine reclocked outputs to devices across your facility. The OMX-12GSDI-1X6 utilizes automatic input cable equalization able to drive SD signals up to 1000 feet and 12G-SDI signals to 150 feet on broadcast grade RG6 cable.
Supports DVB-ASI protocols at 270Mbps as well as SMPTE 259M, 292M, 344M, 424M, 425M, ST2081 and ST2082. A road tough full metal enclosure ensures high quality performance in all outside broadcast and studio facility applications.
Features:
- Supports all SMPTE video formats for HD and UHDTV broadcast requirements
- Six separately buffered and reclocked outputs
- Cable equalization and signal retiming
- LED indicators for signal input lock and rate
- Passes all ancillary data
- Automatic input type detection
- Additional distance can be achieved using Belden 4794R 12G SDI Coax
- Reclocking SDI signals for cascading and longer transmission
- Inter-locked power supply
- Supports 2K and 4K SDI transmission
- Universal Mounting Flanges
