ABOUT
Simple, flexible, exceptional value

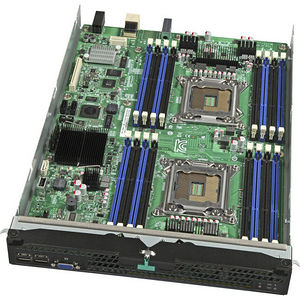

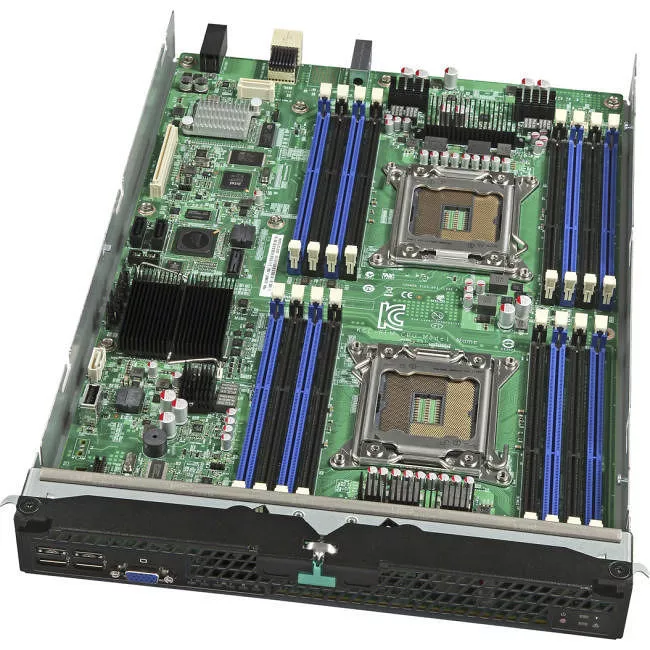

The Intel® Server Compute Module provides the processing and I/O power behind the Intel® Modular Server with support for up to two Intel® Xeon® processors (up to six modules can be deployed). The compute module is entirely diskless and connects to the virtualized shared storage allowing a flexible server configuration.
See More
SPECIFICATIONS
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
HNS2600JFF
Manufacturer Website Address
http://www.intel.com
Brand Name
Intel
Product Model
HNS2600JFF
Product Name
Compute Module HNS2600JFF
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
Processor Technology
Trusted Execution Technology
QuickPath Interconnect Supported
Yes
Chipset Manufacturer
Intel
Chipset Model
C602-J
Memory
Maximum Memory
256 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
8
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
5
Display & Graphics
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 2.0 Ports
5
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
6
Number of SAS Interfaces
4
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Miscellaneous
Package Contents
- Compute Module HNS2600JFF
- 1 x Intel Server Board S2600JFF
- 1 x Bridge Board
- 1 x Node Power Board
- 1 x PCIe x16 Riser Card
- 2 x 1U Passive 84mm x 106mm Heat Sink
- 3 x 4056 Dual Rotor Fan
- 1 x Air Duct
- 1 x 1U Node Tray
Energy Star
Yes
Environmentally Friendly
Yes
Environmental Certification
ENERGY STAR
Warranty
Limited Warranty
3 Year
