ABOUT

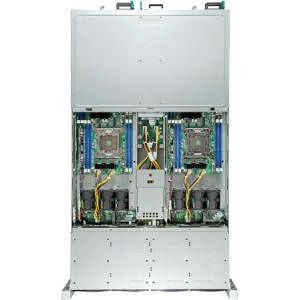

The Intel® Server System H2200JF is specifically designed for the high performance computing (HPC) market, a high-density, 2U, four-node solution supporting up to eight total Intel® Xeon® processor E5-2600 product family, optional QDR/ FDR InfiniBand, and a total of 32 memory DIMMs at 1600MHz, balancing optimal memory bandwidth and computing power to maximize price performance. The Intel® Server System H2200JF includes energy-efficient power supplies, front control panels, and intelligent system-level management for overall system and individual node monitoring. The system is also available with Intel® I/O Expansion Modules or Intel® Remote Management Module 4, upgrades available separately.
SPECIFICATIONS
Manufacturer: Intel Corporation
Manufacturer Part Number: H2216JFKR
Manufacturer Website Address: http://www.intel.com
Brand Name: Intel
Product Line: Server System
Product Model: H2216JFKR
Product Name: Server System H2216JFKR
Marketing Information: The Preferred Compute Density Solution for Maximum I/O Capacity and Memory Throughput
The Intel® Server System H2200JF is specifically designed for the high performance computing (HPC) market, a high-density, 2U, four-node solution supporting up to eight total Intel® Xeon® processor E5-2600 product family, optional QDR/ FDR InfiniBand, and a total of 32 memory DIMMs at 1600MHz, balancing optimal memory bandwidth and computing power to maximize price performance. The Intel® Server System H2200JF includes energy-efficient power supplies, front control panels, and intelligent system-level management for overall system and individual node monitoring. The system is also available with Intel® I/O Expansion Modules or Intel® Remote Management Module 4, upgrades available separately.
Product Type: Barebone System
Number of Nodes: 4
Number of Processors Supported: 2
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
Processor Technology:
QuickPath Interconnect: 8 GT/s
64-bit Processing: Yes
Maximum Memory: 1 TB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Number of Total Memory Slots: 32
Optical Drive Type: No
Controller Type:
RAID Levels: 0, 1, 1+0
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 16
Number of Internal 2.5" Bays: 16
Number of Total Expansion Slots: 4
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 20
Network (RJ-45): Yes
Number of SATA Interfaces: 24
Number of SAS Interfaces: 16
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 1600 W
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.5"
Width: 17.2"
Depth: 29.5"
Package Contents:
- Server System H2216JFKR
- 4 x Intel Server Board S2600JF
- 4 x Bridge Board
- 4 x Node Power Board
- 4 x PCIe x16 Riser Card
- 8 x 1U Passive 91.5mm x 91.5mm Heat Sink
- 12 x 4056 Dual Rotor Fan
- 4 x Air Duct
- 4 x 1U Node Tray
- 1 x 2.5'' SATA/SAS Backplane to support 16x 2.5'' Hot-Swap HDD
- 16 x 2.5" Drive Carriers
- 2 x 1600W Common Redundant Power Supply (Platinum Efficiency)
- 2 x Power Distribution Boards
- Value Rails
Limited Warranty: 3 Year
