GIG-Z390 AORUS ULTRA-00
MPN: Z390 AORUS ULTRA

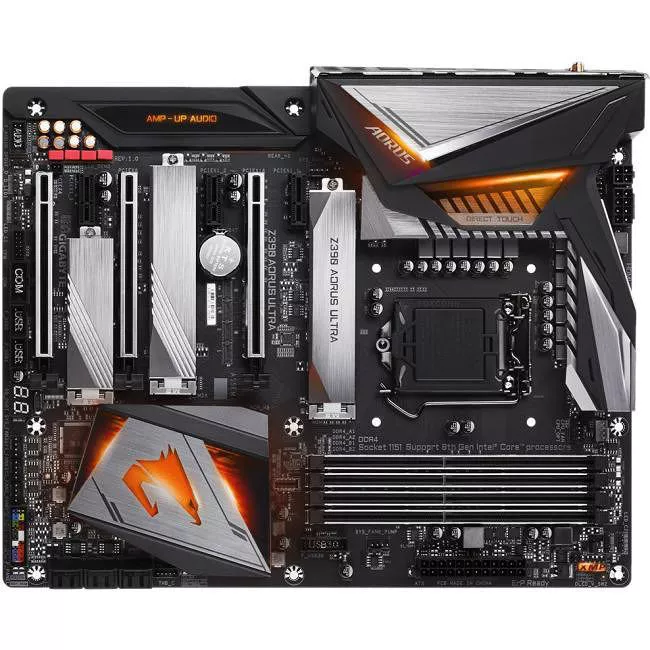

GIGABYTE Z390 AORUS ULTRA Ultra Durable Desktop Motherboard - Intel Z390 Chipset - Socket H4 LGA-1151 - Intel Optane Memory Ready - ATX

Highlights
Intel Z390 AORUS Motherboard with 12+1 Phases Digital VRM, Direct Touch Heatpipe, RGB Fusion, 802.11ac Wireless, Triple M.2 with Thermal Guards, Intel® GbE LAN with cFosSpeed, Front & Rear USB 3.1 Gen 2 Type-CSupports 9th and 8th Gen Intel® Core™ Processors
  • Supports 9th and 8th Gen Intel® Coreâ„¢ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optaneâ„¢ Memory Ready
  • 12+1 Phases Digital VRM Solution with DrMOS
  • Advanced Thermal Design with Direct Touch Heatpipe
  • Onboard Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Intel® Gigabit LAN with cFosSpeed
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 2 Type-Câ„¢ Header
  • Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guards
  • USB DAC-UP 2 with Adjustable Voltage
  • CEC 2019 Ready, Save Power With a Simple Click
  • Multi-Way Graphics Support with Dual Armor and Ultra Durableâ„¢ Design

DESIGN CONCEPT

DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

AORUS PERFORMANCE

12+1 Phase Digital Power Design

Z390 AORUS ULTRA motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 9th Generation Intel Core processors.

Advanced Thermal Design

Z390 AORUS ULTRA uses high performance thermal design by combining massive heatsink, Direct Touch Heatpipe, thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

Multi-Cut Heatsink

Multiple fin-cut on heatsink to improve thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.

Direct Touch Heatpipe

Direct Touch Heatpipe helps transfer heat from MOSFET to heatsink, also connects two parts of MOSFET heatsink for the best cooling performance.

Thick Thermal Pad

By using 1.5mm thicker thermal pad, it can provide better contact pressure between heatsink and components and faster heat transfer.

Triple PCIe Gen3 x4 M.2

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

Triple NVMe M.2 PCIe SSDs in RAID 0 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs

Z390 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
