Highlights:
  • Form Factor: Industrial-grade
  • Processor Supported: 1x Intel Xeon E, Core i3/i5/i7
  • Drive Bays: 2x 2.5", 2x mSATA Internal
  • Supports 2x Double-Wide cards
Contact sales for pricing

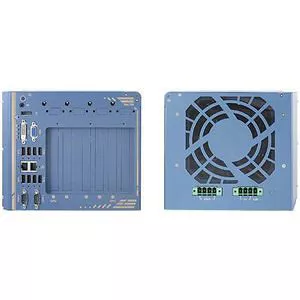

The VWS-115488834-DPW is the world's first dual accelerator card edge ai platform with industrial-grade design and in-vehicle features. Designed specifically to support two highend 250W accelerator cards, it offers tremendous power for emerging hardware-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/ security. The VWS-115488834-DPW edge AI computing platform is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ 8-core/ 16-thread CPUs coupled with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory. The system incorporates two hot-swappable 2.5" trays for easy HDD/ SSD replacement and an M.2 2280 NVMe socket for the ultimate disk performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for securing cable connections. In addition to the dual x16 PCIe slots for card installation, the VWS-115488834-DPW has two other x8 PCIe slots and one x4 PCIe slot for expansion cards to extend function sets like data collection, analytics and communication. The VWS-115488834-DPW has a brand new power delivery design to accept 8~ 35V wide-range DC input and to handle heavy power requirements from dual 250W cards. Along with built-in ignition control, it's feasible to deploy it on a vehicle and directly power it via the car's power system. Mechanical wise, the VWS-115488834-DPW incorporates a heat dissipation design, damping brackets and accelerator card press bar, making it steady and rock-solid in various conditions. With industrial-grade power, thermal and mechanical design, it pushes versatile edge AI inference applications from laboratories to field applications, where reliability matters.

NVIDIA Tesla Turing GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Tesla T416 GB GDDR632025603208.10.2475Specs

Xilinx Card Options

CardModelOff-chip MemoryOff-Chip Bandwidth (GB/s)Internal SRAMInternal Bandwidth (TB/s)INT8 TOPs (peak)Look-Up Tables (LUTs)Power (W)Network InterfacesExplore
Alveo U508 GB46028 MB2416.2872,000751x QSFP28 (100GbE)Specs
Alveo U200 (Active)64 GB7735 MB3118.6892,0002252x QSFP28 (100GbE)Specs
Alveo U200 (Passive)64 GB7735 MB3118.6892,0002252x QSFP28 (100GbE)Specs
Alveo U250 (Active)64 GB7754 MB3833.31,341,0002252x QSFP28 (100GbE)Specs
Alveo U250 (Passive)64 GB7754 MB3833.31,341,0002252x QSFP28 (100GbE)Specs
Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1151
Processor Type
  • Xeon
  • Core
Processor Supported
  • E-21XX
  • E-22XX
  • Core i5
  • Core i7
Thermal Design Power (TDP)
65 W
Chipset Manufacturer
Intel
Chipset Model
C246 Express
Memory
Maximum Memory
128 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
4
Controllers
SATA3
  • Via C246 chipset
  • RAID 0, 1
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
Ultra HD Graphics 630
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slot (Supports Double-Wide cards)
  • 2x PCI-E 3.0 x8 slot
  • 1x PCI-E 3.0 x4 slot
  • 2x Mini-PCI-E with mSATA support
  • 1x PCI-E 3.0 x4 M.2 slot (2242)
Drive Bays
Internal
  • 2x 2.5" drive bays
Interfaces/Ports
Total Number of USB Ports
9
Number of USB 2.0 Ports
1 (internal)
Number of USB 3.0 Ports
8 (4x Gen2, 4x Gen1)
Number of SATA Interfaces
4
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Onboard Video
  • 1x VGA
  • 1x DVI-D
  • 2x DisplayPort
Onboard Audio
  • 1x speaker-out
Serial Port/Header
  • 2x software-programmable RS-232/422/485 (COM1 & COM2)
AMT
  • Supports AMT 12.0
TPM
  • Supports TPM 2.0
Power Description
DC Input
2x 4-pin pluggable terminal block for 8-35V DC input with ignition control
Physical Characteristics
Form Factor
Industrial-grade
Height
7.32"
Width
8.86"
Depth
14.17"
