Highlights:
  • Form Factor: 4U Rackmountable / Tower
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 8x 3.5" Hot-Swap
  • Up to 4x Double-Wide cards
Contact sales for pricing

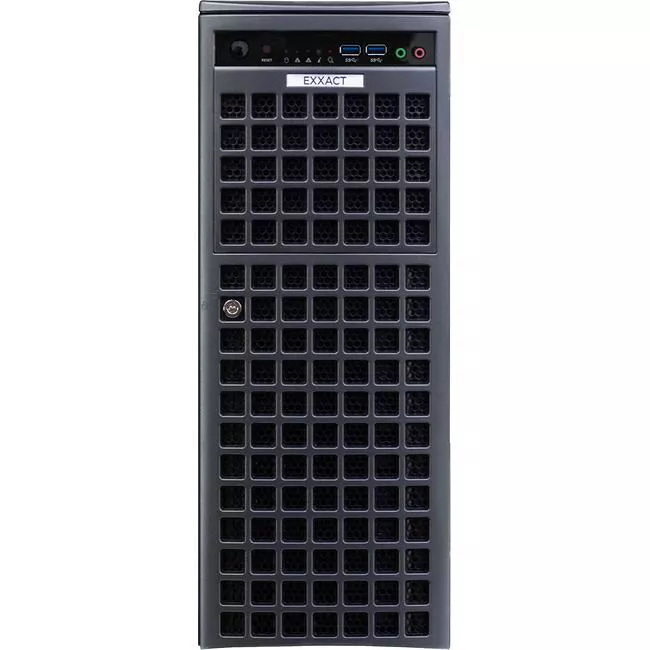

The TensorEX TWS-773645-SMD is a Schrödinger MD Compatible System - FEP+ Workstation supporting 2x Intel Xeon processor Scalable family and a maximum of 2 TB DDR4 memory.

System Highlights:

  • Designed to meet the requirements for Molecular Dynamics GPU Computing or highly complex Free Energy Perturbation (FEP) calculations
  • Optimized to meet or exceed the published performance numbers
  • Preinstalled Desmond GPU computing solutions, designed in collaboration with Schrödinger
  • Save time from installing, optimizing, and validating
  • Fully customizable to meet your budget
  • 3 Year Warranty

NVIDIA Tesla GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Tesla V100 32 GB32 GB HBM29005120640147250Specs
Tesla V100 16 GB16 GB HBM29005120640147250Specs
Tesla T416 GB GDDR632025603208.10.2475Specs
Tesla P100 16 GB16 GB HBM27323584-9.34.7250Specs
Tesla P100 12 GB12 GB HBM25493584-9.34.7250Specs
Tesla P4024 GB GDDR53463840-120.37250Specs

NVIDIA Quadro GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Quadro RTX 500016 GB GDDR6870307238411.20.35200Specs
Quadro P500016 GB GDDR52882560-8.90.28180Specs

* The Quadro RTX 5000/P5000 features active cooling and is recommended in general and especially for environments requiring reduced noise levels.

Schrödinger MD Compatible Systems

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI Links
3
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
2 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
SATA3
  • Via C621 chipset
  • RAID 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 6x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x4 (in x8 slot)
Drive Bays
Fixed
8x 3.5" drive bays
Peripheral
3x 5.25" drive bays
Interfaces/Ports
Total Number of USB Ports
9
Number of USB 3.0 Ports
5 (2x rear, 2x header, 1x Type A)
Number of USB 2.0 Ports
4 (2x rear, 2x header)
Number of SATA Interfaces
  • 10x SATA3 Ports
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
2x COM ports (1x rear, 1x header)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable / Tower
Rack Height
4U
Height
18.2"
Width
7.0"
Depth
26.5"
