Highlights:
  • Rack Height: 4U
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 16x 2.5" Hot-Swap (8x NVMe)
  • Supports up to 8x NVIDIA Tesla V100 SXM2 GPUs
Contact sales for pricing

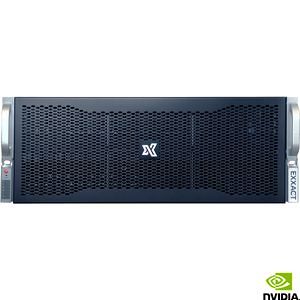

The TensorEX TS4-1686449-NVL is a 4U rack mountable server supporting 2x Intel Xeon Scalable family processors, a maximum of 3 TB DDR4 memory, and eight Tesla V100 Volta GPUs (SXM2), with up to 150GB/s NVLink 2.0 GPU-GPU interconnect.

GPUs have provided groundbreaking performance to accelerate deep learning research with thousands of computational cores and up to 100x application throughput when compared to CPUs alone. Exxact has developed the TensorEX TS4-1686449-NVL, featuring NVIDIA GPU technology coupled with state-of-the-art NVLink 2.0 GPU-GPU interconnect technology.

Features:

  • Supports 2x Intel Xeon Scalable family processors (Socket P)
  • 8x Tesla V100 SXM2 32 GB (15.7 TFlops of single precision, 900 GB/s of memory bandwidth, and 32 GB of memory per board) or V100 SXM2 16 GB GPUs
  • Up to 3 TB DDR4 memory
  • 16x 2.5" Hot-Swap drive bays (Support up to 8x NVMe)
  • 4U Rackmount
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Number of UPI
3 UPI up to 10.4 GT/s
GPU
8x NVIDIA Tesla V100 Volta SXM2
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
3 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (Low-profile, GPU tray for GPUDirect RDMA)
  • 2x PCI-E 3.0 x16 slots (Low-profile, CPU tray)
Drive Bays
Hot-swap
  • 16x 2.5 hot-swap drive bays
  • Supports 8x NVMe drives
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
8
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
1x CPM port (header)
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.6"
Depth
31.7"
