About
Specifications

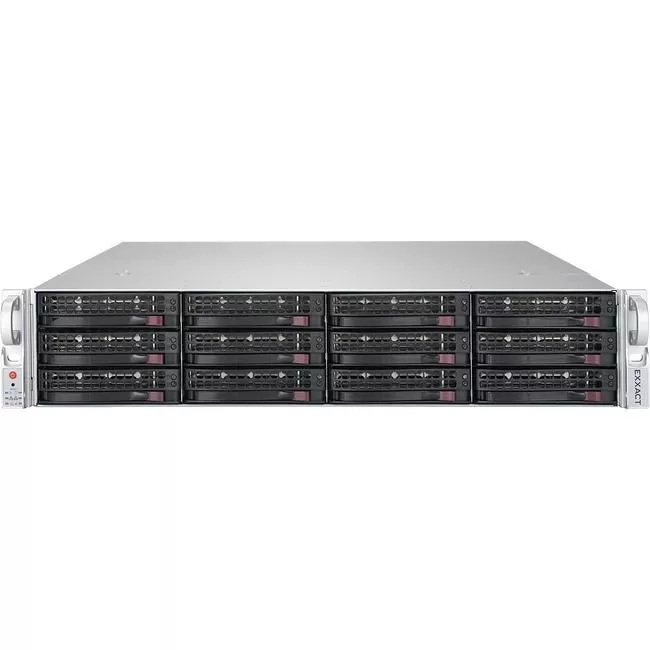

The TensorEX TS2-110195063 is a 2U rack mountable server supporting 2x Intel Xeon Scalable family processor and a maximum of 1.5 TB DDR4 memory.
About
The TensorEX TS2-110195063 is a 2U rack mountable server supporting 2x Intel Xeon Scalable family processor and a maximum of 1.5 TB DDR4 memory.
Specifications
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
- Xeon
Processor Supported
- Bronze 31XX
- Silver 41XX
- Gold 51XX
- Gold 61XX
- Platinum 81XX
- Bronze 32XX
- Silver 42XX
- Gold 52XX
- Gold 62XX
- Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
1.5 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ45) Ports
2
I/O Expansions
PCI Express
- 1x PCI-E 3.0 x16 slots (Full-Height, Half-Length)
- 2x PCI-E 3.0 x8 slots (Full-Height, Half-Length)
- 2x PCI-E 3.0 x8 slot (Low-Profile)
- 1x PCI-E 3.0 x16 slot (Add-on-Module)
- 1x PCI-E 3.0 x4 NVMe M.2 slot
Drive Bays
Hot-Swap
- 12x 3.5" Hot-Swap Drive Bays
Interfaces/Ports
Total Number of USB 3.0 Ports
4 (rear)
Number of SATA Interfaces
12
LAN
- 2x 10GBASE-T RJ45 Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
- 1x VGA
DOM
2 Disk on Module port
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
25.5"
