MPN: TS1-145558396

Exxact TensorEX 1U Server - 2x Intel Xeon 6900P/6900E+ Series - TS1-145558396

Highlights

About

Specifications

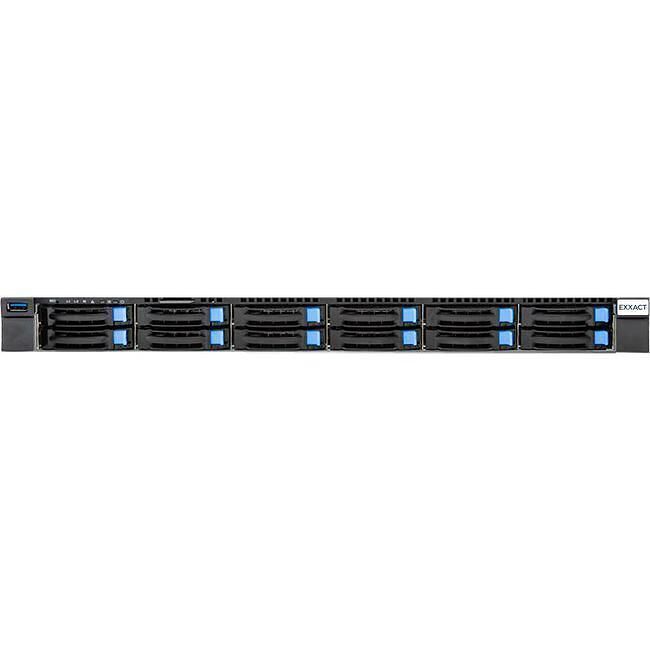

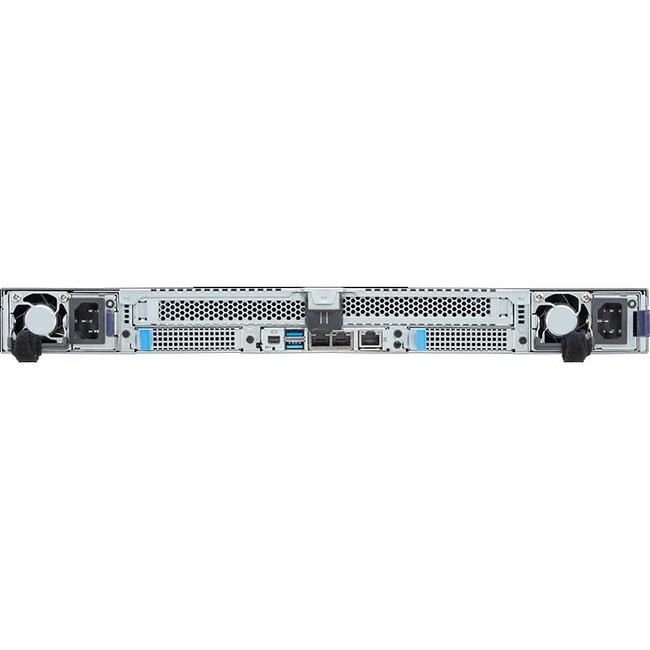

The TensorEX TS1-145558396 is a 1U server supporting 2x Intel Xeon 6900P/6900E+ Series processors and 24x DDR5 memory slots.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket BR LGA-7529

Processor Type

Xeon 6
Xeon 6+

Processor Supported

6900P-Series
6900E+-Series

Thermal Design Power (TDP)

500 W

Chipset Manufacturer

Intel

Chipset Model

SoC

Memory

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-6400/PC5-51200 RDIMM
DDR5-8800/PC5-70400 MRDIMM (Xeon 6900P Series only)

Number of Total Memory Slots

Controllers

NVMe

Via SoC

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600

Network & Communication

Ethernet Technology

1000BASE-T

I/O Expansions

PCI Express

2x PCI-E 5.0 x16 FHHL slots
2x PCI-E 5.0 x16 OCP3.0 slots
2x PCI-E 5.0 x4 M.2 slots (2280/22110)
1x PCI-E 5.0 x2 M.2 slot (2280)

Drive Bays

Hot-swap

12x 2.5" hot-swap drive bays
Supports PCI-E 5.0 x4 NVMe U.2

Interfaces/Ports

USB Ports

1x USB 3.2 Gen1 ports (Front, Type A)
2x USB 3.2 Gen1 ports (Rear, Type A)

Number of NVMe Interfaces

12x U.2
3x M.2

LAN

2x 1000BASE-T (1GbE) Ports
1x RJ45 Management Port

Onboard Video

1x Mini DisplayPort

Trusted Platform Module

1x TPM Header with SPI interface (Optional)

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes (1+1)

Maximum Power Supply Wattage

2000 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.71"

Width

17.24"

Depth

32.09"
