EPP-ESP0510-00
MPN: ESP0510

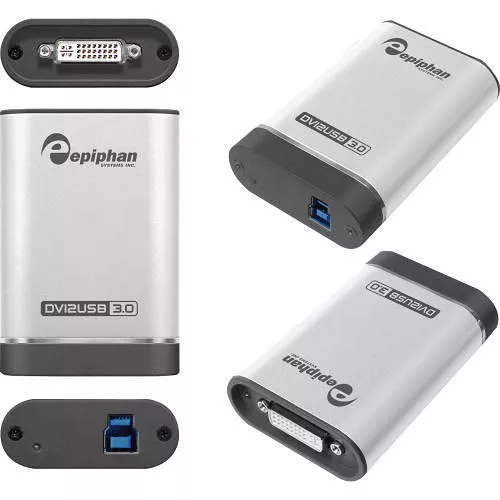

Epiphan ESP0510 DVI2USB 3.0 HDMI, DVI and VGA Video Grabber

Highlights

Epiphan's DVI2USB 3.0™ is a versatile, high performance video grabber device that performs uncompressed capture of HD video (1920×1200/1920×1080) from HDMI, DVI, or VGA at 60 frames per second over USB 3.0.

  • Capture from DVI, HDMI, or VGA video display or camera sources
  • Capture video and audio from HDMI sources
  • Supports USB 3.0 or USB 2.0 data uplink
  • True 24-bit color and consistent frame rate performance regardless of video content
  • Capture at resolutions up to 1920×1200 at 60 frames per second
  • Interfaces to multiple 3rd party applications compatible with Direct-Show on Windows, Video4Linux on Linux, QuickTime on Mac OS X
  • Sources power from USB port, no external power supply required
  • Durable aluminum enclosure.

DVI2USB 3.0 is Epiphan's most versatile frame grabber, able to capture video from any VGA, DVI, or HDMI sources in resolutions up to 1920x1200, regardless of video content. The simultaneous capture of stereo or 2-channel digital HDMI audio is also supported.

No software or hardware modifications need to be performed on the source device, which makes the DVI2USB 3.0 one of the most secure and reliable solutions for the capture of high resolution imagery. As well, the DVI2USB 3.0 is portable and small enough to fit into a shirt pocket, making it easy to transport between different locations and integrate into existing systems.

DVI2USB 3.0 is self-powered through the USB port and requires no external power source. It is able to achieve a capture rate of at least 60 frames per second in YUV 4:2:0 color format when connected to a USB 3.0 (SuperSpeed) host. DVI2USB 3.0 can also be used with USB 2.0, however USB 2.0 performance is significantly reduced due to lower available bandwidth.
