About
Specifications

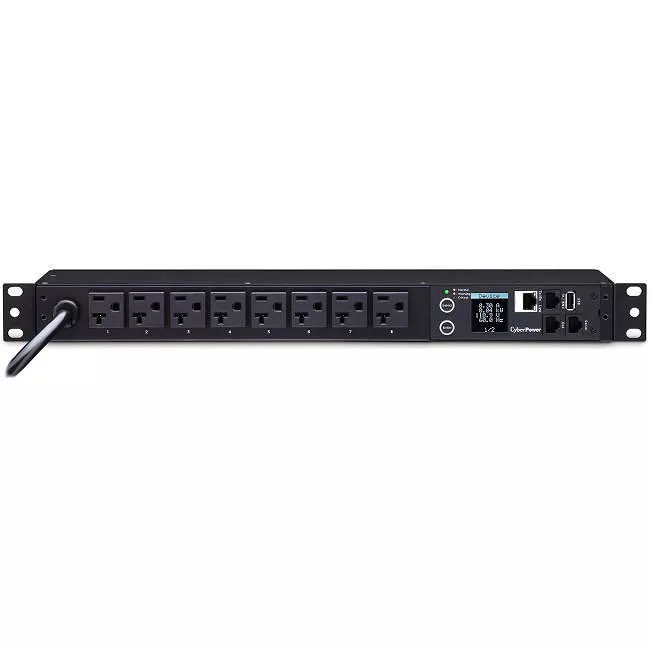

The CyberPower PDU31002 an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 120V 20A output. PDU31002 distributes power to 8 NEMA 5-20R receptacles from a single twist lock NEMA L5-20P, or, with the included adaptor, NEMA 5-20P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.
About
The CyberPower PDU31002 an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 120V 20A output. PDU31002 distributes power to 8 NEMA 5-20R receptacles from a single twist lock NEMA L5-20P, or, with the included adaptor, NEMA 5-20P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.
Specifications
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
PDU31002
Manufacturer Website Address
https://www.cyberpowersystems.com
Brand Name
CyberPower
Product Series
Monitored PDU
Product Model
PDU31002
Product Name
PDU31002
Product Type
PDU
Technical Information
PDU Type
Monitored
Plug/Connector Type
NEMA L5-20P
Plug/Connector Detail
1 x NEMA L5-20P
Receptacle Type
NEMA 5-20R
Receptacle Detail
8 x NEMA 5-20R
Features
LCD Display
Power Description
Input Voltage
120 V AC
Input Voltage Range
100 V AC - 120 V AC
Output Voltage
120 V AC
Output Voltage Range
100 V AC - 120 V AC
Input Current
20 A
Input Frequency
60 Hz
Management
Management
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
Remote Outlet Switching
No
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Metal
Mounting Orientation
Horizontal/Vertical
Mount Type
Rack-mountable
Form Factor
Rack
Rack Height
1U
Cord Length
12 ft
Height
1.8"
Width
17.1"
Depth
4.4"
Length
4.4"
Weight (Approximate)
6 lb
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
131°F (55°C)
Minimum Storage Temperature
5°F (-15°C)
Maximum Storage Temperature
140°F (60°C)
Miscellaneous
Package Contents
- PDU31002
- Adaptor
Additional Information
Certifications & Standards
- UL 60950-1
Energy Star
No
Country of Origin
China
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
UL Listed
Yes
Warranty
Limited Warranty
3 Year
