CyberPower PDU15SWHVIEC12ATNET Switched ATS PDU, 200-240V/15A, 12 Outlets, 1U Rackmount

MPN: PDU15SWHVIEC12ATNET
CYP-PDU15SWHVIEC12ATNET-00
Highlights
  • Rack Height: 1U
  • Product Type: PDU
  • Condition: New
  • Category: Power Devices
CYP-PDU15SWHVIEC12ATNET-00
CYP-PDU15SWHVIEC12ATNET-00

CyberPower PDU15SWHVIEC12ATNET Switched ATS PDU, 200-240V/15A, 12 Outlets, 1U Rackmount

MPN: PDU15SWHVIEC12ATNET
Highlights
  • Rack Height: 1U
  • Product Type: PDU
  • Condition: New
  • Category: Power Devices

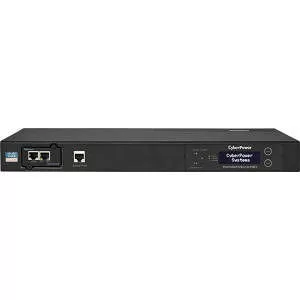

The CyberPower PDU15SWHVIEC12ATNET, a 12-outlet (rear), 1U rackmount switched automatic transfer switch (ATS) power distribution unit (PDU), provides 200-240V 15A output. It distributes unfiltered electrical pass-through to 12 IEC-320 C13 receptacles from redundant IEC-320 C14 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU15SWHVIEC12ATNET includes a SNMP/HTTP card (RMCARD203). With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the PDU. The switched outlet receptacles can be managed individually or collectively. The LCD panel provides local monitoring of the PDU and on/off control for the outlets. It can also be used to measure the electrical current (displayed in amperes) used by connected equipment. The LCD panel also shows input and output voltages, active power consumption levels (displayed in kilowatts), and hardware and firmware versions.

Designed for datacenters and other demanding electrical applications, the PDU15SWHVIEC12ATNET has rugged, industrial-grade metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted horizontally and is UL and CSA certified by ETL, and Class A FCC-certified. A three-year warranty covers the PDU and connected equipment for as long as you own the product.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Outlet Switching
Output receptacles can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs, including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.

Automatic Transfer Switch
Dual power cords (A & B) provide redundant power sources to devices with single power supplies and can be plugged into separate compatible sources to ensure continuous access. Users select the preferred source as the primary input. CyberPower Smart App Online and Sinewave series UPS are highly recommended for use as the power source.

LCD Panel
Provides real-time meter status for current (amperes), input and output voltages, power consumptions (kilowatts), and hardware/firmware versions.

Upgradeable Hardware & LCD Firmware
Are updatable to the latest versions by using the serial communication port and included cable.

Serial Communication Port & Cable
Used to update/upgrade the hardware and LCD firmware.

Environmental Sensor Option
Supports optional environment sensor (ENVIROSENSOR).

SNMP/HTTP Card
Included and installed, RMCARD203 provides outlet control, remote monitoring, reporting, and event notifications, via Email, SMS Text, or SNMP Trap. RMCARD203 firmware is upgradeable with FTP process.

Protocol Support
This Switched ATS PDU provides protocol support for PowerPanel Business Edition, HTTP, TCP/IP, UDP, DHCP, and SNMP including SNMPv3, and IPv4, IPv6, NTP, SMTP protocols.

Administrative Rights
Administrator and user rights can be established to provide IT personnel with access to the Management Console via a web browser to monitor and/or manage the PDU settings.
