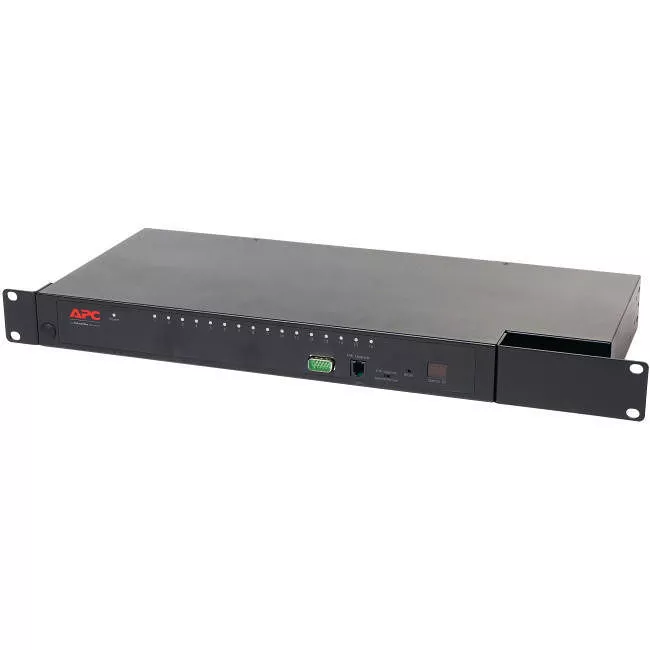

The APC KVM 2G Analog Switch supports one local user and sixteen ports. It is a 1U rack-mountable device. It includes a CD with software, installation guide, and rack mounting brackets. The switch supports multiple platforms and hot-pluggable operation.
About
The APC KVM 2G Analog Switch supports one local user and sixteen ports. It is a 1U rack-mountable device. It includes a CD with software, installation guide, and rack mounting brackets. The switch supports multiple platforms and hot-pluggable operation.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
KVM0116A
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
KVM 2G, Analog, 1 Local User, 16 ports
Packaged Quantity
1 Each
Product Type
KVM Switchbox
Technical Information
KVM Technology
Analog
Number of Computers Supported
16
Number of Local Users Supported
1
Video
Graphic Mode
UXGA
Maximum Video Resolution
1600 x 1200
Interfaces/Ports
Network (RJ-45)
Yes
PS/2 Port
Yes
USB
Yes
VGA
Yes
Management Port
Yes
Number of Network (RJ-45) Ports
16
Number of PS/2 Ports
2
Number of USB Ports
2
Number of VGA Ports
1
Power Description
Input Voltage
240 V
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Mounting Location
Front
Height
1.7"
Width
16.7"
Depth
7.4"
Weight (Approximate)
5.29 lb
Mounting Preference
No Preference
Miscellaneous
For Country/Region
United States
Certifications & Standards
cUL Listed|C-tick|CE|EAC|TAA compliance|UL-AR|VCCI Class A|VDE
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Product Take Back Program
No
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=KVM0116A_ROHS_DECLARATION&p_FileName=KVM0116AKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323195092&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323195092&lang=en-us
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin
Taiwan
Warranty
Limited Warranty
2 Year
