About
Specifications

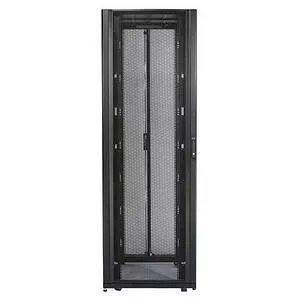

Tall and wide enclosure with 48U spaces for additional equipment and increased cable management options for high density server and networking applications.
About
Tall and wide enclosure with 48U spaces for additional equipment and increased cable management options for high density server and networking applications.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3157
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter
Product Name
NetShelter SX Enclosure
Product Type
Rack Cabinet
Technical Information
Application/Usage
Physical Characteristics
Color Family
Black
Product Color
Black
Units Per Pallet
1
Dynamic/Rolling Weight Capacity
2253.12 lb
Static/Stationary Weight Capacity
3004.90 lb
Door Material Gauge
16
Rail Material Gauge
14
Roof/Top Material Gauge
18
Side Panel Material Gauge
18
Height
88.9"
Width
29.5"
Depth
42.1"
Weight (Approximate)
372.78 lb
Rack Height
48U
Rack Width
19"
Miscellaneous
Package Contents
- NetShelter SX 48U Enclosure
- Documentation CD
- Key(s)
- Keyed-alike doors and side panels
- Leveling feet
- Mounting Hardware
- Pre-installed casters
- Side Panels
Additional Information
- Adjustable mounting depth
- Allows side to side airflow
- Integrated cable access holes
- Mounts two APC metered PDUs in one rear channel
- Numbered U positions
- Protective grounding provisions
- Removeable reversible fully ventilated doors
- Simple baying installation
- UBC Zone 4 stabilization provisions
Compatibility
Multi-vendor equipment
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Environmentally Friendly
Yes
Environmental Certification
RoHS
Green Premium
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3157_ROHS_DECLARATION&p_FileName=AR3157KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760084&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760084&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_V1
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_V1
REACH free of SVHC
Yes
Toxic Heavy Metal Free
Yes
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
