AKT-T3QM-T3DIAY-AKTU-00
MPN: T3QM-T3DIAY-AKTU

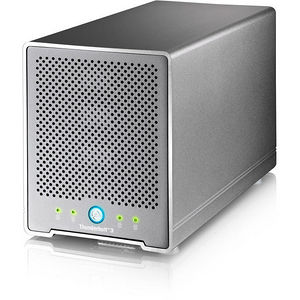

AKiTiO T3QM-T3DIAY-AKTU Thunder3 Quad Mini Drive Enclosure - Desktop


Highlights

AKiTiO Thunder3 Quad Mini

External Thunderbolt™ 3 Storage Solution for Mac and PC

This 4-bay storage enclosure is designed to house up to four 2.5-inch drives. With Software RAID, four striped SSDs can reach data transfer speeds of up to 1375 MB per second while the Thunderbolt 3 interface provides sufficient bandwidth for additional 4K video signal streams and data transfers at the same time. An ultra durable aluminum casing provides efficient heat dissipation, plus an extra large rear fan keeps your drives cool during long hours of operation.

Features

  • Thunderbolt 3 interface for lightning fast transfer speeds up to 40 Gbps
  • Second Thunderbolt 3 port supports Thunderbolt 3, USB 3.1 (10 Gbps), and DisplayPort devices
  • Power delivery provides up to 15W (5V/3A) of power to compatible laptops
  • Dedicated DisplayPort for additional monitor to expand the workspace
  • Holds up to four 2.5 drives with SATA 6Gb/s interface
  • Removable trays for easy SSD and HDD installation
  • Large fan for active cooling with power switch

Thunderbolt™ 3

Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all - delivering the fastest, most versatile connection to any dock, display, or data device. For the first time, one computer port connects to Thunderbolt devices, every display, and billions of USB devices. A single cable now provides four times the data and twice the video bandwidth of any other cable, while also supplying power to bus-powered devices.

The AKiTiO Thunder3 Quad Mini has two Thunderbolt 3 ports. The second port operates the same as a Thunderbolt 3 computer port by supporting Thunderbolt 3 (up to 5 daisy chained), USB 3.1 (10 Gbps), and DisplayPort devices.

DisplayPort

The dedicated DisplayPort connector makes it easy to connect an additional monitor to extend your workspace and it will free up the second Thunderbolt 3 port for other Thunderbolt 3 (up to 5 daisy chained), USB 3.1 (10 Gbps), and DisplayPort devices.

Reversible USB Type-C™ Connector with Power Delivery

Power delivery over USB-C

The AKiTiO Thunder3 Quad Mini supports power delivery (PD) over USB-C, providing 15W of power to laptops like the MacBook Pro (late 2016) that support charging from a 5V/3A power source. This allows you to work with the external drive without the battery levels of your laptop dropping even though the laptop is not plugged into any other power source.

4-Bay Storage Solution

Removeable trays

Designed to house up to four 2.5-inch drives, the tray based system allows for easy installation and replacement of the hard disk drives (HDDs) and solid state drives (SSDs).

Benchmark

With Software RAID, the AKiTiO Thunder3 Quad Mini provides users the ability to edit and playback multiple streams of HD and/or 4K content with enough headroom to simultaneously daisy-chain additional monitors and storage devices.

The transfer speeds for this benchmark were obtained using the AJA System Test tool with 4GB test files at 5K resolution. These results closely reflect the real-world performance but the actual transfer rates can vary depending on the test environment

For traditional spinning hard disk drives (HDDs), the maximum transfer rate for a single drive (Non-RAID) is around 100 MB/s. For this reason, even four striped drives max out at around 400 MB/s.
