Highlights:
  • Rack Height: 4U
  • Processor Supported: 2x Intel Xeon Scalable Family
  • Drive Bays: 24x 2.5" Hot-Swap
  • Supports up to 8x Double-Wide cards
Contact sales for pricing

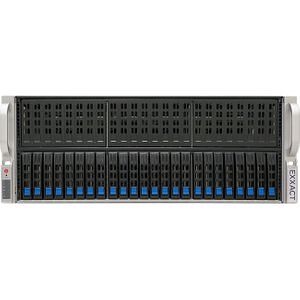

The TensorEX TS4-672693-REL is a 4U rack mountable server supporting 2x Intel Xeon Scalable processors and a maximum of 3 TB DDR4 memory. It is specced to provide maximum GPU-accelerated performance for Relion users. It features the most of up-to-date Relion software stack.

RELION for Cryo-EM system highlights:

  • Optimized for Cryo-EM
  • Supports up to 2x Intel Xeon Scalable family Processors
  • Supports 8x Double Width GPUs
  • Up to 3TB DDR4 ECC Registered memory, up to 2666 MHz
  • 4U Rackmount

Software:

  • CentOS 7
  • Relion 3
  • Motioncorr
  • MotionCor2
  • Gctf v1.06
  • CTFFind4.1.10
  • ResMap v1.1.4
  • CUDA Toolkit v9.2
  • MPICH v3.2.1
  • Chimera v1.13
  • Evince
  • FFTW3
  • IMOD v4.9.9
  • Gnuplot
  • Summovie v1.0.2
  • Unblur v1.0.2
  • EMAN v2.21
Relion for Cryo-EM Solutions

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI links
3
Thermal Design Power (TDP)
N/A
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
3 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C622 chipset
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 8x PCI-E 3.0 x16 slots (Supports double-wide cards)
  • 2x PCI-E 3.0 x8 (2x in x16 slots)
  • 1x PCI-E 3.0 x4 (in x16 slot)
Drive Bays
Hot-swap
  • 24x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Number of SATA Interfaces
10
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes (2+2)
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
29"
