Highlights:
  • Rack Height: 2U
  • Processor Supported: 2x IBM POWER8 with NVLINK
  • Drive Bays: 2x 2.5" Hot-Swap
  • Supports up to 4x NVIDIA Tesla P100 SXM2 GPUs
Contact sales for pricing

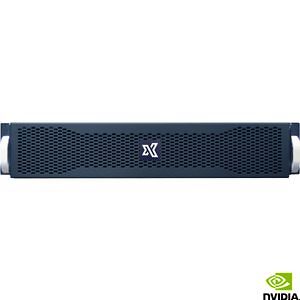

The TensorEX TS2-306052-NVL is a 2U rack mountable server supporting 2x IBM POWER8 processors with NVLink, a maximum of 1 TB DDR4 memory, and 4x NVIDIA Tesla P100 SXM2 GPUs.

GPUs have provided groundbreaking performance to accelerate deep learning research with thousands of computational cores and up to 100x application throughput when compared to CPUs alone. Exxact has developed the TensorEX TS2-306052-NVL, featuring IBM POWER8 processors and NVIDIA GPU technology coupled with state-of-the-art NVLink CPU-GPU and GPU-GPU interconnect technology.

Features:

  • Supports 2x IBM POWER8 processors
  • 4x Tesla P100 SXM2 (10.6 TFlops of single precision, 732 GB/s of memory bandwidth, and 16 GB of memory per board) GPUs
  • Up to 1 TB DDR4 memory
  • 2x 2.5" Hot-Swap drive bays
  • 2U Rackmount
Processor & Chipset
Number of Processors Supported
2
Processor Socket
POWER8
Processor Type
POWER8
Processor Supported
POWER8 with NVLink
Thermal Design Power (TDP)
Up to 190W
GPU
4x NVIDIA Tesla P100 SXM2
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-1600/PC4-12800
Number of Total Memory Slots
32
Controllers
SATA3
  • Integrated onboard
Display & Graphics
Graphics Controller Manufacturer
N/A
Graphics Controller Model
N/A
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots
  • 3x PCI-E 3.0 x8 slots
Drive Bays
Hot-swap
2x 2.5" Hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
2
LAN
  • 4x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 IPMI LAN Port
Onboard Video
1x VGA Connector
Serial/Header
1x COM port
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
N/A
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.43"
Width
17.48"
Depth
N/A
